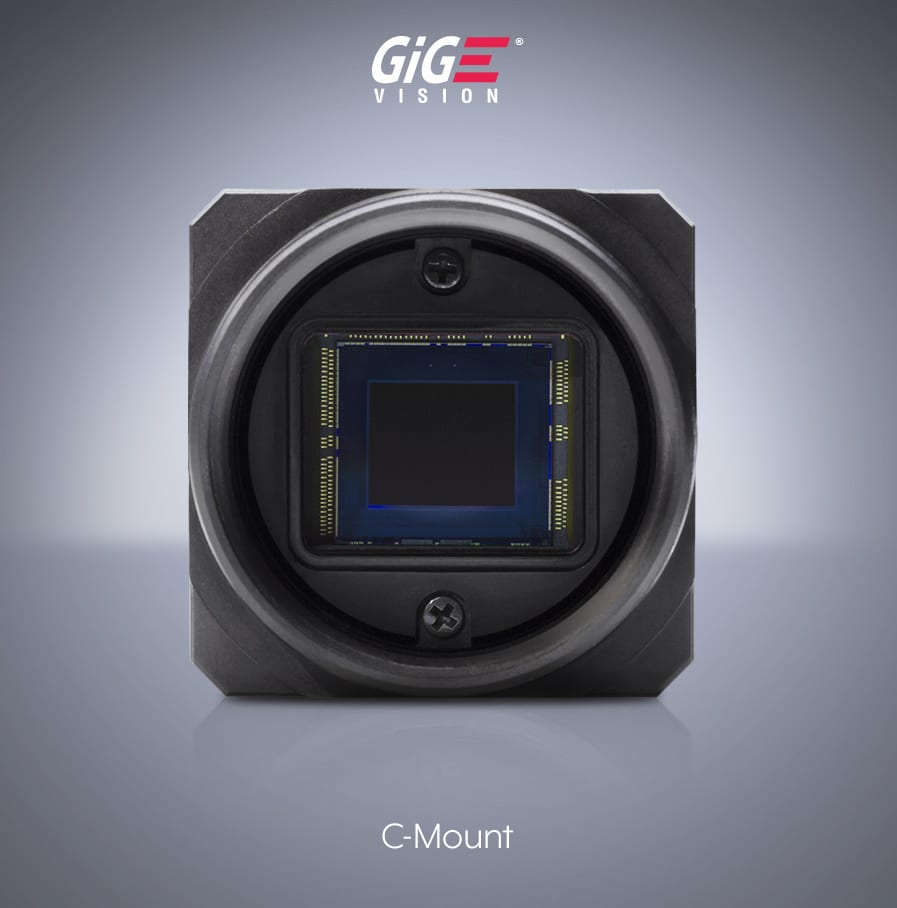

Triton 5.0 MP Model

Triton 5.0 MP Model from LUCID Vision Labs Inc. is now available from Integro Technologies.

Download the LUCID Triton Datasheet here.

Description

Triton 5.0 MP Model from LUCID Vision Labs Inc. is now available from Integro Technologies.

Active sensor alignment for superior optical performance. Lightweight and compact. GigE Vision and GenIcam compliant PoE machine vision camera designed for all industrial environments with exceptional price performance.

Learn more about specifications here: https://thinklucid.com/product/triton-5-mp-imx264/

Sensor
Sony IMX264 CMOS
Sensor
Sony IMX264 CMOS
Resolution
5.0 MP, 2448 x 2048 px
Frame Rate
24 FPS
Model SKUs Chroma Lens Mount GigE Vision Connector Included Accessory
TRI050S-CC Color C-mount M12 M8 GPIO IP67 Cap
TRI050S-MC Mono C-mount M12 M8 GPIO IP67 Cap
Resolution
5.0 MP, 2448 x 2048 px
Frame Rate
24 FPS
Model SKUs Chroma Lens Mount GigE Vision Connector Included Accessory
TRI050S-CC Color C-mount M12 M8 GPIO IP67 Cap
TRI050S-MC Mono C-mount M12 M8 GPIO IP67 Cap



SENSOR PROPERTIES
Sensor Model Sony IMX264 CMOS
Shutter Type Global
Sensor Size 11.1 mm (Type 2/3″)
Resolution 2448 x 2048 px, 5.0 MP
Pixel Size 3.45 µm (H) x 3.45 µm (V)
Framerate 24 FPS @ 5.0 MP
PHYSICAL PROPERTIES
Dimensions 29 x 29 x 45 mm
Lens Mount C-Mount
Weight 67 g
INTERFACE AND POWER INFORMATION
Digital Interface 1000BASE-T GigE M12, PoE
GPIO Interface 8 pin M8 connector
Opto-Isolated I/O Ports 1 input, 1 output
Non-Isolated I/O Ports 2 bi-directional
Power Requirement PoE (IEEE 802.3af), or 12-24 VDC external
Power Consumption 3.1W via PoE, 2.5W when powered externally
IMAGING PROPERTIES
Image Buffer 128 MB
Image Processing Gain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion
Pixel Formats Mono8/10/12/16, Bayer8/10/12/16, RGB8, YUV422, YUV411
Image Modes Horizontal and vertical binning, decimation, ROI, horizontal and vertical flip
ADC 12 bit
Gain Range 0 dB to 48 dB analog and digital
Exposure Time 30 μs to 10 s
CAMERA FEATURES
User Sets 1 default and 2 custom user set
File System Size 16 MB
Chunk Data Timestamp, frame counter, offset X/Y, width/height, exposure time, gain, black level, line status, sequencer set
Event Data Acquisition start/end, exposure start/end, line rise/fall, error
Counter & Timer 2 counters and 2 timers
Sequencer Exposure time, gain
Synchronization Software trigger, hardware trigger, PTP (IEEE 1588)
STANDARDS AND CERTIFICATIONS
Standard GigE Vision v2.0
Compliance CE, FCC, RoHS, REACH, WEEE
Storage Temperature -30 to 60°C
Operating Temperature -20 to 55°C ambient
Humidity Operating: 20% ~ 80%, relative, non-condensing
Shock and Vibration DIN EN 60068-2-27, DIN EN 60068-2-64
Warranty 3 year
