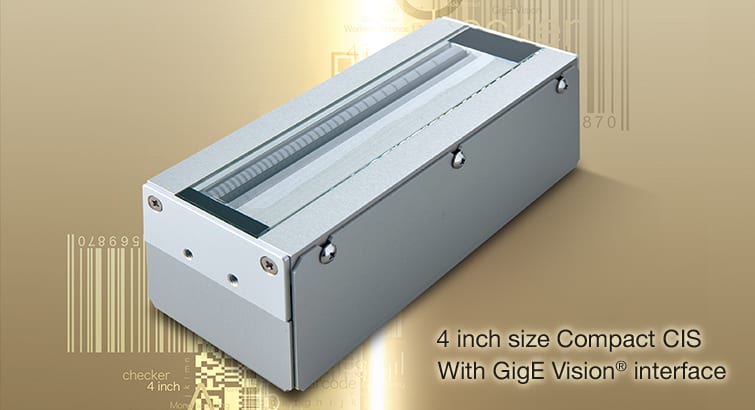

Description
- Simple installation! Compact!
- Scan width 106mm
- Working distance 1.3mm
- GigE Vision?
- Mono scanning
Basic characteristics
Illumination spectrum
Spectral sensitivity of sensor IC
Depth of Focus (DOF)
Example of scanned image (ref)
Specifications
| Item | KD6R106SX | |
| Scan width | ㎜ | 106 |
| Valid pixels | Pixel | 2,736 |
| Resolution | dpi | 600 |
| Output data format | ?? | GigE Vision??2.0 |
| Scan speed | kHz/line | 6 |
| Power | ?? | 5V × 1ch (20A max.) |
| Light source | ?? | Red LED (660nm) |
| Exposure control | ?? | LED pulse control |
| Focal point | ㎜ | 1.3 (from glass surface) |
| Size (L×W×H) | ㎜ | 134 × 53 × 50 |
| Weight | g | 300 |
| Regulatory compliance | ?? | RoHS |
* Please download outline drawings?here.
GigE Vision??is a registered trade mark of AIA (Automated Imaging Association).
